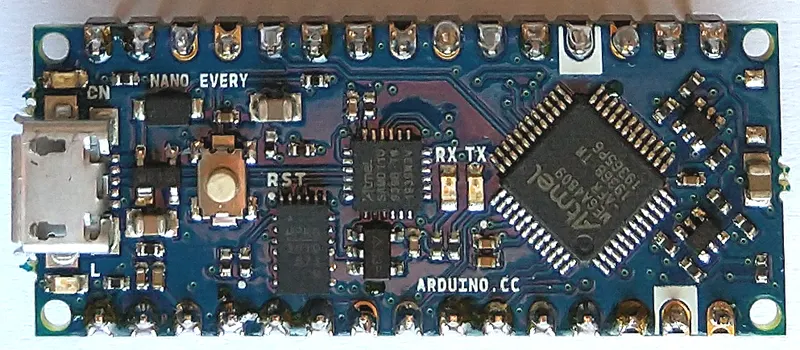

Arduino Nano Every specs & datasheets
The Nano pinout with a 20 MHz ATmega4809: 48 KB of flash and 6 KB of SRAM, in a 5 g board.
- Chip / SoC
- Microchip ATmega4809
- CPU
- 8-bit AVR (megaAVR 0-series)
- Clock
- 20 MHz
- RAM
- 6 KB SRAM
- Flash
- 48 KB
- I/O voltage
- 5 V
- Released
- 2019
- Status
- In production
Draft entry: these specs were compiled from the linked sources and are waiting for a second check. Spotted a mistake? Use the form at the end of the page.
Specifications
- Chip / SoC
- Microchip ATmega4809[1]
- CPU
- 8-bit AVR (megaAVR 0-series)[3]
- Clock
- 20 MHz[1]
- RAM
- 6 KB SRAM[3]
- Flash
- 48 KB[1]
- I/O voltage
- 5 V[2]
- Dimensions
- 45 × 18 mm, 5 g[1]
- Upload limits
- 47.5 KB flash, 6 KB RAM[4]
Upload limits are what a sketch or firmware may use after the bootloader, as the build tools enforce them, not the chip’s full memory.
Can I still use it?
- Arduino framework
- Supported[1]Official Arduino core.
As published by each project, checked weekly. A platform not listed has no published information here, which is not the same as no support.
Datasheets and documents
Gotchas
What changed
Since the Arduino Nano
| Spec | Arduino Nano | Arduino Nano Every |
|---|---|---|
| Chip / SoC | Microchip ATmega328 (Nano 2.x boards: ATmega168) | Microchip ATmega4809 |
| CPU | 8-bit AVR | 8-bit AVR (megaAVR 0-series) |
| Clock | 16 MHz | 20 MHz |
| RAM | 2 KB SRAM | 6 KB SRAM |
| Flash | 32 KB (2 KB used by the bootloader) | 48 KB |
| GPIO | 14 digital I/O (6 PWM); A0–A5 also usable as digital pins | — |
| Analog | 8 analog inputs (10-bit) | — |
| USB | Mini-USB via FTDI FT232RL | — |
| Dimensions | 45 × 18 mm, 7 g | 45 × 18 mm, 5 g |
History and use today
History
Released in 2019 as the low-cost successor to the Nano, keeping its pinout and 5 V logic.[1]
Still useful for
A drop-in upgrade for Nano projects that ran out of RAM.
