Arduino Nano specs & datasheets

Microcontroller board · Arduino · Released 2008

The classic breadboard Arduino: an ATmega328 on a 45 × 18 mm board, the same chip as the Uno in a fraction of the space.

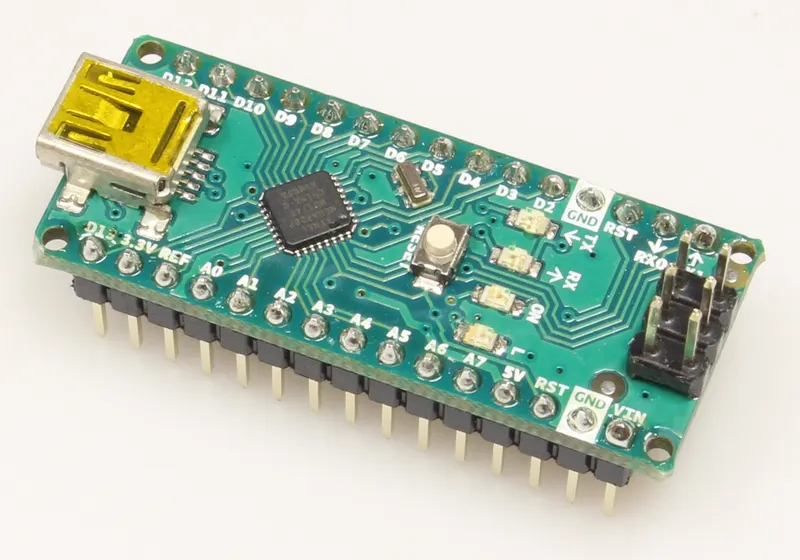

Arduino Nano
Photo: MakeMagazinDE, CC BY-SA 4.0, via Wikimedia Commons
CPU
8-bit AVR
Clock
16 MHz
RAM
2 KB SRAM
Flash
32 KB (2 KB used by the bootloader)
I/O voltage
5 V
Released
2008
Status
In production

Specs checked against the cited sources on 1 October 2026 (AI-assisted source check). Spotted a mistake? Use the form at the end of the page.

Specifications

11 specs
Chip / SoC
Microchip ATmega328 (Nano 2.x boards: ATmega168)[5]
CPU
8-bit AVR[3]
Clock
16 MHz[2]
RAM
2 KB SRAM[3]
Flash
32 KB (2 KB used by the bootloader)[2]
GPIO
14 digital I/O (6 PWM); A0–A5 also usable as digital pins[1]
Analog
8 analog inputs (10-bit)[3]
I/O voltage
5 V[2]
USB
Mini-USB via FTDI FT232RL[2]
Dimensions
45 × 18 mm, 7 g[1]
Upload limits
14 KB flash, 1 KB RAM[7]

Upload limits are what a sketch or firmware may use after the bootloader, as the build tools enforce them, not the chip’s full memory.

Can I still use it?

1 platforms
Arduino framework
Supported[1]Official Arduino core.

As published by each project, checked weekly. A platform not listed has no published information here, which is not the same as no support.

Datasheets and documents

5 documents

Gotchas

2 known issues
  • Old vs new bootloader. Nanos shipped with two bootloaders over the years; if uploads time out, choose “ATmega328P (Old Bootloader)” in the IDE.[6]
  • 5 V logic. I/O is 5 V. Sensors and modules that run at 3.3 V (most modern ones) need level shifting on their inputs.[1]

What changed

From the specs

Next came the Arduino Nano Every

SpecArduino NanoArduino Nano Every
Chip / SoCMicrochip ATmega328 (Nano 2.x boards: ATmega168)Microchip ATmega4809
CPU8-bit AVR8-bit AVR (megaAVR 0-series)
Clock16 MHz20 MHz
RAM2 KB SRAM6 KB SRAM
Flash32 KB (2 KB used by the bootloader)48 KB
GPIO14 digital I/O (6 PWM); A0–A5 also usable as digital pins—
Analog8 analog inputs (10-bit)—
USBMini-USB via FTDI FT232RL—
Dimensions45 × 18 mm, 7 g45 × 18 mm, 5 g

History and use today

Editorial

History

Launched in May 2008, the Nano is similar to the Arduino Duemilanove but made for use on a breadboard, with no power jack.[4]

Still useful for

Still common and cheap. For new designs, the Nano Every and the USB-C Nano R4 keep the pinout with more memory.
